Results(37)

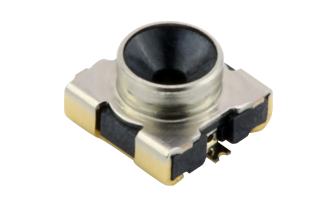

<P/N: 818024666

P/N: 818024666

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 250 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 300 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.6 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 500 Cycles

 See details

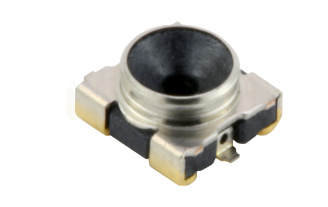

<P/N: 818024668

P/N: 818024668

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 250 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 300 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.6 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 500 Cycles

 See details
<P/N:8180100055

P/N:8180100055

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 250 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 200 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.4 dB Max
2.0 Isolation: 12 dB Max
2.1 Durability: 100 Cycles

 See details

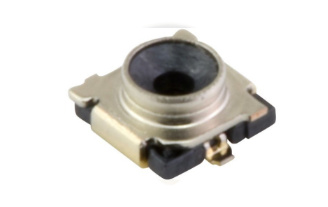

<P/N: 818011998

P/N: 818011998

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 60 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 300 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.5 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 100 Cycles

 See details
<P/N:818045095

P/N:818045095

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 60 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 300 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.5 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 100 Cycles

 See details

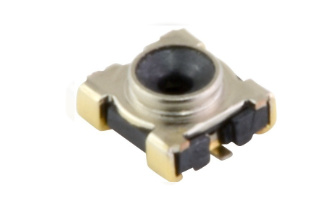

<P/N: 818003767

P/N: 818003767

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 60 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 100 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.40 Max
1.9 Insertion Loss: 0.3 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 100 Cycles

 See details

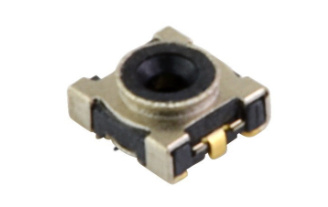

<P/N: 818010311

P/N: 818010311

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 10 V DC (50Hz R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 200 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.40 Max
1.9 Insertion Loss: 0.4 dB Max
2.0 Isolation: 15 dB Max
2.1 Durability: 30 Cycles

 See details

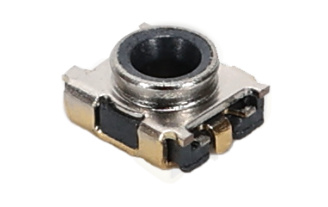

<P/N:818025366

P/N:818025366

1.1 Frequency Range: DC ~ 11 GHz
1.2 Characteristic Impedance: 50 ±5 Ohm
1.3 Rated Power: 2 W
1.4 Rated Voltage: 60 V AC (R.M.S)
1.5 Operating Temperature: -40 ℃ to +85 ℃
1.6 Insulation Resistance: 500 MΩ
1.7 Withstanding Voltage: 100 V/AC
1.8 Voltage Standing Wave Ratio (VSWR): 1.50 Max
1.9 Insertion Loss: 0.4 dB Max
2.0 Isolation: 10 dB Max
2.1 Durability: 30 Cycles

 See details

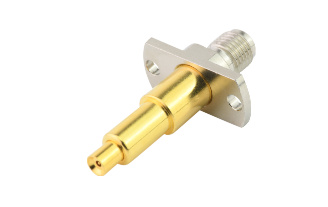

<P/N:818017737

P/N:818017737

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 5000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

See details

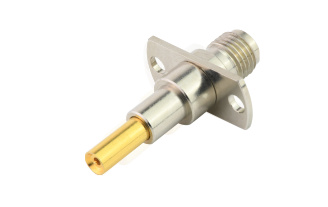

<P/N:818017735

P/N:818017735

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

See details

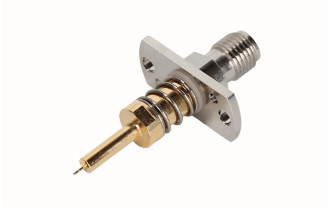

<P/N:818052946

P/N:818052946

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 15000 Cycles
1.7 Voltage Standing Wave Ratio: 1.70Max
1.8 Insertion Loss: 0.85dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

See details

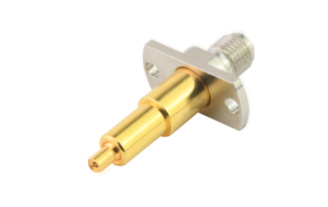

<P/N:818017661

P/N:818017661

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 100000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

See details
