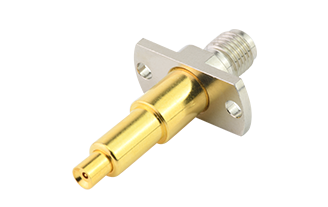

P/N:818017737

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 5000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

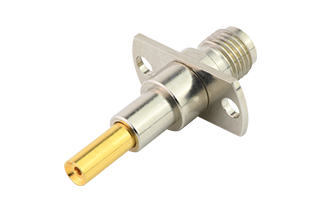

P/N:818017735

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

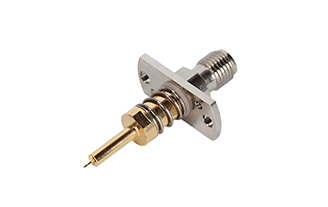

P/N:818052946

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 15000 Cycles
1.7 Voltage Standing Wave Ratio: 1.70Max
1.8 Insertion Loss: 0.85dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

P/N:818017661

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 100000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

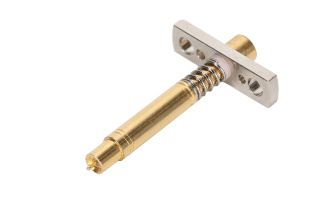

P/N: 818039200

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 500MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 20000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "
2.0 External Conductor Impedance: 100mΩ

P/N: 818017733

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

P/N: 818017362

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

P/N: 818017615

"1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

P/N: 818017363

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N:818033471

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 20000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ "

P/N:818040823

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 200V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.50Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N:818048748

1.1 Frequency Range: DC~9GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.80Max
1.8 Insertion Loss: 2.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ
