P/N:818017737

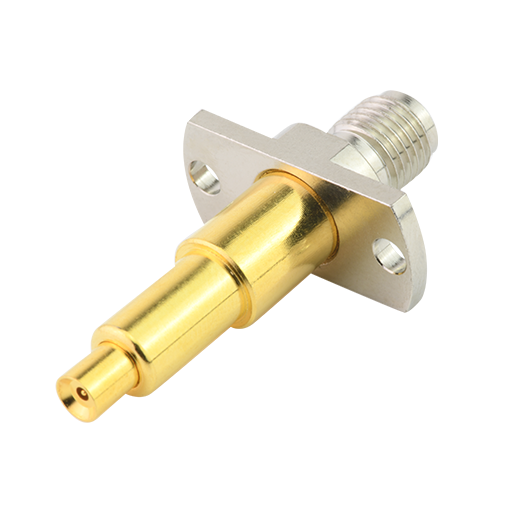

MINI RF I to SMA Female Measurement Probe，L20*W9*H35.5
01. Product specifications
02. Files and Service
04. Supporting parts
Product specifications
Structural Features
Assembly Method Vertical category Measurement Probe
Number of Rows （Single Port）
Housing Features
 metal
Contact（outer conductor） Features
Plating Specification Nickel + Gold Terminal Base Material copper alloy
Contact（probe）Features
Plating Specification Nickel + Gold Terminal Base Material copper alloy
Packing Features
Packaging Method PE bag
Dimensions
Length 20 mm Width 9 mm
Height 35.5 mm
Electrical Specifications
Frequency Range Up to 6 GHz
Dielectric Withstanding Voltage 300V AC/min
Operating Voltage 60 VAC
Product Characteristics
Connector System MINI RF  Switch  CONN，Generation I、II
Connector Type Straight Plug-in
Operating Environment
Operating Temperature -40 ℃~+85 ℃
Files and Service
Drawing
P/N:818017737 view download
Supporting parts

P/N: 818024666

P/N: 818024668
