P/N:818052946

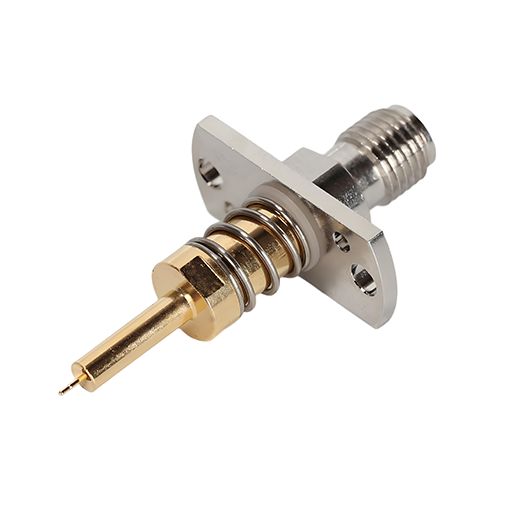

MINI RF II to SMA Female Measurement Probe，L20*W9*H32.55
01. Product specifications
02. Files and Service
Product specifications
Structural Features
Assembly Method Vertical category Measurement Probe
Number of Rows （Single Port）
Housing Features
 metal
Contact（outer conductor） Features
Plating Specification Nickel + Gold Terminal Base Material copper alloy
Contact（probe）Features
Plating Specification Nickel + Gold Terminal Base Material copper alloy
Packing Features
Packaging Method PE bag
Dimensions
Length 20 mm Width 9 mm
Height 32.55 mm
Electrical Specifications
Frequency Range Up to 6 GHz
Dielectric Withstanding Voltage 300V AC/min
Operating Voltage 60 VAC
Product Characteristics
Connector System MINI RF  Switch  CONN，Generation II
Connector Type Straight Plug-in
Operating Environment
Operating Temperature -40 ℃~+85 ℃
Files and Service
Drawing
P/N:818052946 view download
