P/N: 818017738

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818052947

1.1 Frequency Range: DC~11GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 100V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 2.20Max
1.8 Insertion Loss: 3.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818017505

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

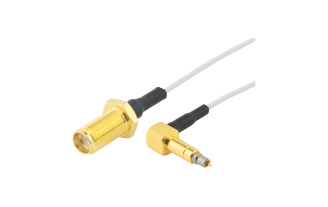

P/N: 818021014

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

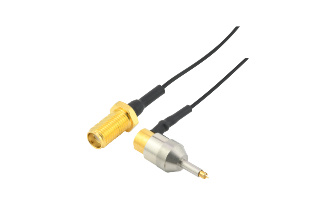

P/N: 818017732

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 200V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 2.50dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818017663

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818016475

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818023420

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 200V/AC
1.6 Durability: 500 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 2.50dB Max
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818023303

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818042144

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818021698

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 100 Cycles
1.7 Voltage Standing Wave Ratio: 1.50Max
1.8 Insertion Loss: 2.90dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

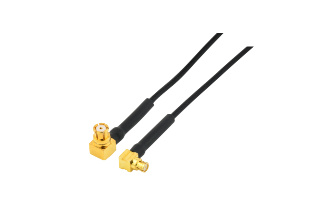

P/N: 818024908

1.1 Frequency Range: DC~8.5GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 500 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 3.50dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ
