P/N: 818003767
MINI RF SWITCH 4GEN Auto L1.8*W1.8*H0.85
01. Product specifications
02. Files and Service
04. Supporting parts
Product specifications
Structural Features
Assembly Method Vertical category MINI RF SWITCH
Number of Rows Single Port 　 　
Housing Features
 Metal
Contact（outer conductor） Features
Plating Specification Nickel + Gold Terminal Base Material Copper alloy
Contact（probe）Features
Plating Spectifications  Nickel + Gold Terminal Base Material Stainless steel
Operation/Application
Packaged Type  SMT
Packing Features
 Way of Packing  Reel+Tray Pack
Dimensions
Length 1.8 Width 1.8
Height 0.85 　 　
Electrical Specifications
Frequency Range Up to 11 GHz
Dielectric Withstanding Voltage 300VAC/min
Operating Voltage 60 VAC
Product Characteristics
Connector System MINI  RF  Switch 4GEN
Connector Type Straight Plug-in
Operating Environment
Operating Temperature -40 ℃~+85 ℃
Files and Service
Drawing
818003767 view download
Supporting parts

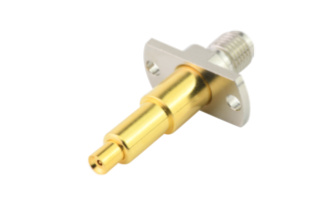

P/N: 818017733

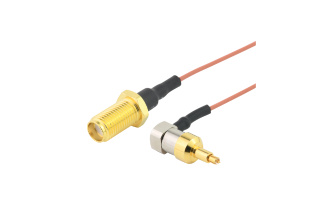

P/N: 818017663
