P/N: 818000147

SCS RF Connector, R/A Switch, DIP Type. Frequency Range: DC~3 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~3 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~3 GHz )
1.7 Isolation: -12 dB Min ( DC~3 GHz ) ; Voltage Rating: 250 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 100 V AC/60 s

P/N: 818000238

SCS RF Connector, R/A Switch, SMT+DIP Type. Frequency Range: DC~4 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 150 V AC/60 s

P/N: 818000239

SCS RF Connector, R/A SW, SMT Type. Frequency Range: DC~4 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ); Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 150 V AC/60 s

P/N: 818000307

SCS RF Connector, V/T SW, SMT Type. Frequency Range: DC~2.5 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -30°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~2.5 GHz ) ; Insertion Loss: -0.3 dB Max ( DC~2.5 GHz ) ; Isolation: -20 dB Min ( DC~2.5 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 100 V AC/60 s

P/N: 818000452

SCS RF Connector, R/A SW, SMT Type. Frequency Range: DC~4 GHz; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 250 V AC/60 s

P/N: 818000457

SCS RF Connector, R/A SW, DIP Type. Frequency Range: DC~4 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 250 V AC/60 s

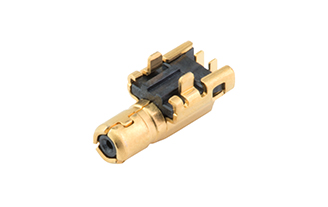

P/N: 818000601

SCS RF Connector, R/A SW, DIP Type. Frequency Range: DC~4 GHz; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 250 V AC/60 s

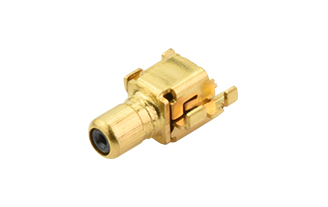

P/N: 818001340

SCS RF Connector, R/A SW, 4 DIP Type. Frequency Range: DC~4 GHz ; Operating Humidity: 35%~85%R.H ; Temperature Rating: -25°C ~ +85°C ; Nominal Characteristic Impedance: 50Ω ; V.S.W.R.: 1.5 Max ( DC~4 GHz ) ; Insertion Loss: -0.6 dB Max ( DC~4 GHz ) ; Isolation: -10 dB Min ( DC~4 GHz ) ; Voltage Rating: 100 V AC ( R.M.S ) ; Insulation Resistance: 1000 MΩ ; Withstanding Voltage: 250 V AC/60 s

P/N: 818000159

1.1 Frequency Range: DC~3GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -30°C ~ +85°C
1.4 Insulation Resistance: 1000MΩ
1.5 Dielectric Withstanding Voltage: 100V/AC
1.6 Voltage Standing Wave Ratio: 1.30Max
1.7 Insertion Loss: 1.00dB Max
1.8 Rated Voltage: 250V AC ( R.M.S )
1.9 Inner Conductor Impedance: 100mΩ
2.0 External Conductor Impedance: 100mΩ

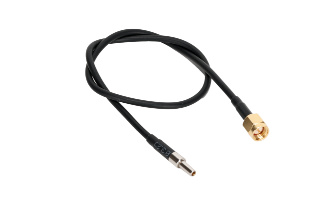

P/N: 818023115

1.1 Frequency Range: DC~3GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -30°C ~ +85°C
1.4 Insulation Resistance: 1000MΩ
1.5 Dielectric Withstanding Voltage: 100V/AC
1.6 Voltage Standing Wave Ratio: 1.50Max
1.7 Insertion Loss: 1.80dB Max
1.8 Rated Voltage: 250V AC ( R.M.S )
1.9 Inner Conductor Impedance: 100mΩ
2.0 External Conductor Impedance: 100mΩ

P/N: 818000496

1.1 Frequency Range: DC~3GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +80°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 100V/AC
1.6 Voltage Standing Wave Ratio: 1.50Max
1.7 Insertion Loss: 1.60dB Max
1.8 Rated Voltage: 250V AC ( R.M.S )
1.9 Inner Conductor Impedance: 100mΩ
2.0 External Conductor Impedance: 100mΩ

P/N: 818000407

1.1 Frequency Range: DC~3GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -30°C ~ +85°C
1.4 Insulation Resistance: 1000MΩ
1.5 Dielectric Withstanding Voltage: 100V/AC
1.6 Voltage Standing Wave Ratio: 1.50Max
1.7 Insertion Loss: 1.60dB Max
1.8 Rated Voltage: 250V AC ( R.M.S )
1.9 Inner Conductor Impedance: 100mΩ
2.0 External Conductor Impedance: 100mΩ
