P/N: 818000546

USS RF I Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min. ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818000544

USS RF III Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818002914

USS RF III Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818001301

USS RF IV&V Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818001302

USS RF IV&V Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818004444

USS RF VI Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818003961

USS RF I Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.4 ( DC~6GHz ) ; Mechanical Durability: 500 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818000547

USS RF III Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818004460

USS RF III Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.15 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -40°C ~ +85°C

P/N: 818001300

USS RF III Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 500V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -55°C ~ +85°C

P/N: 818004461

USS RF V Receptacle to SMA Female. Frequency Range: 0~6GHz; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.15 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -40°C ~ +85°C

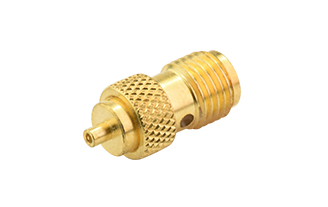

P/N: 818004445

USS RF VI Receptacle to SMA Female. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V ; Inner Contact Resistance: 30mΩ ; Outer Contact Resistance: 20mΩ ; VSWR: ≤1.15 ( DC~6GHz ) ; Mechanical Durability: 300 Cycles ; Operating Temperature: -40°C ~ +85°C
