Refine your search
Results(18)
<P/N: 818000071

P/N: 818000071

USS RF I Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000281

P/N: 818000281

USS RF I Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000368

P/N: 818000368

USS RF I Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000006

P/N: 818000006

USS RF I Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000117

P/N: 818000117

USS RF I Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000158

P/N: 818000158

USS RF II Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details

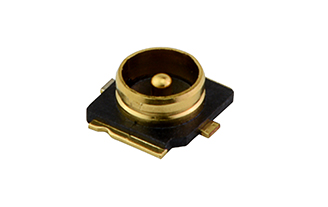

<P/N: 818000068

P/N: 818000068

USS RF II Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details

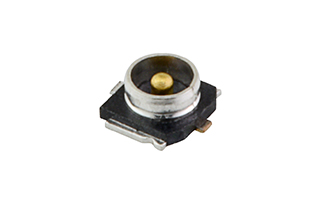

<P/N: 818000157

P/N: 818000157

USS RF III Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) ,≤1.4 ( 3~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details

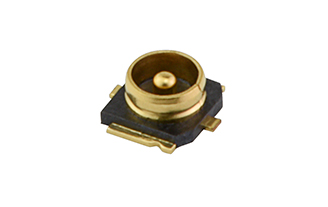

<P/N: 818000976

P/N: 818000976

USS RF III Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ), ≤1.4 ( 3~6GHz ); Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details

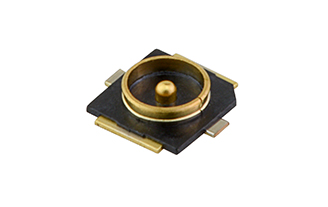

<P/N: 818000983

P/N: 818000983

USS RF III Receptacle. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) , ≤1.4 ( 3~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details

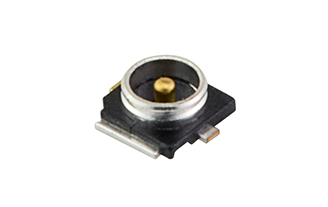

<P/N: 818000531

P/N: 818000531

USS RF IV Receptacle. Frequency Range: 0~6GHz; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) , ≤1.4 ( 3~6GHz ) ； Mechanical Durability: 30 Cycles ； Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

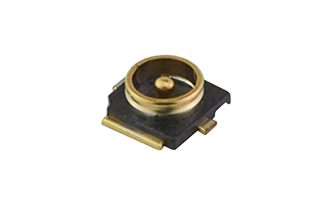

<P/N: 818000931

P/N: 818000931

USS RF IV Receptacle. Frequency Range: 0~6GHz ；Impedance: 50±5Ω ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ；Outer Contact Resistance: 10mΩ Max ；VSWR: 1.3 ( DC~3GHz ) ，≤1.4 ( 3~6GHz ) ；Mechanical Durability: 30 Cycles ； Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details
