P/N: 818021926

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 25000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.55dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818045873

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 20000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.40dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818045874

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 20000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.40dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

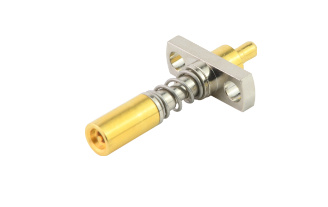

P/N: 818017364

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.35Max
1.8 Insertion Loss: 0.40dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

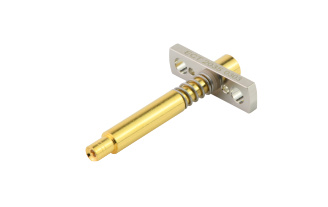

P/N: 818022025

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 500V/AC
1.6 Durability: 20000 Cycles
1.7 Voltage Standing Wave Ratio: 1.20Max
1.8 Insertion Loss: 0.35dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

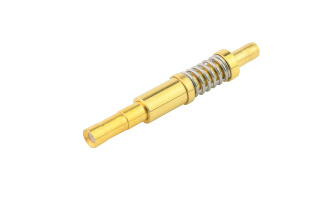

P/N: 818017734

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.60dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

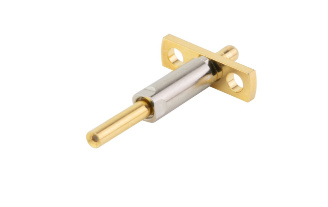

P/N: 818023359

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818029017

1.1 Frequency Range: DC~8GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 10000 Cycles
1.7 Voltage Standing Wave Ratio: 1.40Max
1.8 Insertion Loss: 0.80dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818018162

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 2000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818018163

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 2000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818027381

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ

P/N: 818025382

1.1 Frequency Range: DC~6GHz
1.2 Impedance: 50Ω
1.3 Frequency Range: -40°C ~ +85°C
1.4 Insulation Resistance: 100MΩ
1.5 Dielectric Withstanding Voltage: 300V/AC
1.6 Durability: 1000 Cycles
1.7 Voltage Standing Wave Ratio: 1.60Max
1.8 Insertion Loss: 3.00dB Max
1.9 Rated Voltage: 60V AC ( R.M.S )
2.0 Inner Conductor Impedance: 100mΩ
2.1 External Conductor Impedance: 100mΩ
