Refine your search
Results(58)
<P/N: 818001953

P/N: 818001953

USS RF I Plug. Frequency Range: 0~6GHz; Impedance: 50±5Ω; Insulation Resistance: 500MΩ Min; Dielectric Withstanding Voltage: 200V AC/60s; Inner Contact Resistance: 20mΩ Max; Outer Contact Resistance: 10mΩ Max; VSWR: ≤1.3 ( DC~3GHz ) ,≤1.5 ( 3~6GHz ) ; Mechanical Durability: 30 Cycles; Relative Humidity: 95%R.H.Max; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000089

P/N: 818000089

USS RF I Plug. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) ,
≤1.5 ( 3~6GHz ) ; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000189

P/N: 818000189

USS RF I Plug. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) , ≤1.5 ( 3~6GHz ）; Mechanical Durability: 30 Cycles ; Relative Humidity: 95%R.H.Max ; Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000097

P/N: 818000097

USS RF II Plug. Frequency Range: 0~6GHz; Impedance: 50±5Ω; Insulation Resistance: 500MΩ Min; Dielectric Withstanding Voltage:
200V AC/60s; Inner Contact Resistance: 20mΩ Max; Outer Contact Resistance: 10mΩ Max; VSWR: ≤1.3 ( DC~3GHz ), ≤1.5 ( 3~6GHz ）； Mechanical Durability: 30 Cycles；Relative Humidity: 95%R.H.Max； Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818000141

P/N: 818000141

USS RF II Plug. Frequency Range: 0~6GHz；Impedance: 50±5Ω ； Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max；Outer Contact Resistance: 10mΩ Max ；VSWR: ≤1.3 ( DC~3GHz ) ，≤1.5 ( 3~6GHz ）；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details
<P/N: 818003484

P/N: 818003484

USS RF III Plug. Frequency Range: 0~6GHz ；Impedance: 50±5Ω ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ； Outer Contact Resistance: 10mΩ Max ；VSWR: ≤1.3 ( DC~3GHz ) ，≤1.5 ( 3~6GHz ）；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

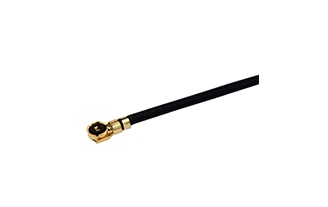

<P/N: 818000984

P/N: 818000984

USS RF III Plug. Frequency Range: 0~6GHz ；Impedance: 50±5Ω ； Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ；Outer Contact Resistance: 10mΩ Max ；VSWR: ≤1.3 ( DC~3GHz ) ，≤1.5 ( 3~6GHz ）；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

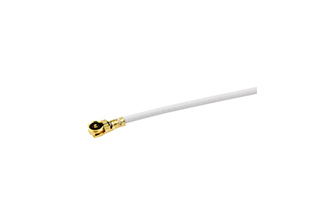

<P/N: 818000532

P/N: 818000532

USS RF IV Plug. Frequency Range: 0~6GHz; Impedance: 50±50 Ω； Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ； Outer Contact Resistance: 10mΩ Max ；VSWR: ≤1.3 ( DC~3GHz ) ，≤1.5 ( 3~6GHz ）；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

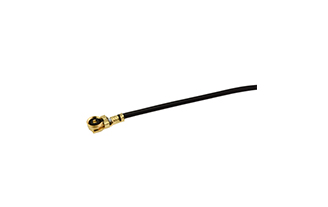

<P/N: 818001928

P/N: 818001928

USS RF IV Plug. Frequency Range: 0~6GHz；Impedance: 50±5Ω；Insulation Resistance: 500MΩ Min; Dielectric Withstanding Voltage:
200V AC/60s; Inner Contact Resistance: 20mΩ Max; Outer Contact Resistance: 10mΩ Max; VSWR: ≤1.3 ( DC~3GHz ), ≤1.5 ( 3~6GHz ）; Mechanical Durability: 30 Cycles; Relative Humidity: 95%R.H.Max; Operating Temperature: -40°C ~ +85°C

 See details

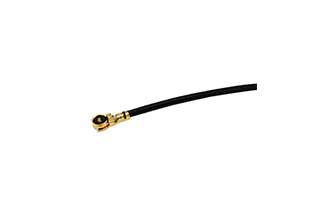

<P/N: 818000501

P/N: 818000501

USS RF IV Plug. Frequency Range: 0~6GHz ; Impedance: 50±5Ω ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 200V AC/60s ; Inner Contact Resistance: 20mΩ Max ; Outer Contact Resistance: 10mΩ Max ; VSWR: ≤1.3 ( DC~3GHz ) ,
≤1.5 ( 3~6GHz ） ; Mechanical Durability: 30 Cycles ； Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

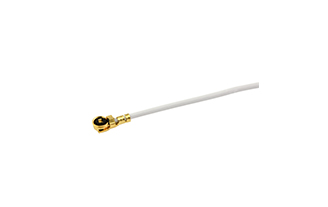

<P/N: 818001335

P/N: 818001335

USS RF IV Plug. Frequency Range: 0~6GHz ；Impedance: 50±5Ω ； Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ；Outer Contact Resistance: 10mΩ Max ；VSWR: ≤1.3 ( DC~3GHz ) ，≤1.5 ( 3~6GHz ）；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details

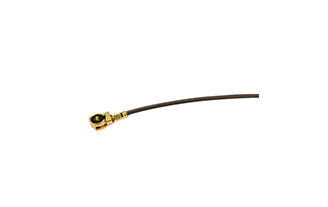

<P/N: 818001909

P/N: 818001909

USS RF IV Plug. Frequency Range: 0~6GHz ；Impedance: 50±5Ω； Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Inner Contact Resistance: 20mΩ Max ； Outer Contact Resistance: 10mΩ Max ；VSWR:≤1.3 ( DC~3GHz )，
≤1.5 ( 3~6GHz ） ；Mechanical Durability: 30 Cycles ；Relative Humidity: 95%R.H.Max ；Operating Temperature: -40°C ~ +85°C

 See details
