P/N: 818003842

BTB Pitch0.4, H0.8, 24P, Recep. Voltage Rating: 60V AC/DC ； Insulation Resistance: Before testing—— 1000MΩ Min ，After testing—— 100MΩ Min ；Rated Current: 0.3AMPS/Pin Max ； Dielectric Withstanding Voltage: 150V DC/60s ；Contact Resistance: Before testing—— 50mΩ Max ，After testing——90mΩ Max ；Plug&Receptacle Mating Force: 1.2N/Pin Max ；Plug&Receptacle un-mating Force: 0.165N/Pin Min ； Operating Temperature: -40°C ~ +85°C ；Storage Temperature Range: -40°C ~ +85°C

P/N: 818018222

BTB Pitch0.35 H0.6, 30P Recep. Voltage Rating: 20V AC/DC ；Insulation Resistance: Before Testing——1000MΩ Min ，After Testing—— 1000MΩ Min ； Dielectric Withstanding Voltage: 200V AC/60s ；Contact Resistance: Signal—— 30mΩ Max/Pin ，GND——5mΩ Max/Pin ； Plug&Receptacle Mating Force: 1st—— 40N/Max ；30th—— 40N/Min ；Plug&Receptacle un-mating Force: 1st—— 8N/Min ， 30th——5N/Min ； Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃

P/N: 818018298

BTB Pitch0.35 H0.6, 50P Recep. Voltage Rating: 20V AC/DC ; Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing—— 1000MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s；Contact Resistance: Signal——30mΩ Max/Pin，GND——5mΩ Max/Pin；Plug&Receptacle Mating Force: 1st—— 40N/Max， 30th —— 40N/Min；Plug&Receptacle un-mating Force: 1st—— 8N/Min，30th—— 5N/Min；Operating Temperature: -40℃～＋85℃；Storage Temperature Range: -5℃～＋40℃

P/N: 818022628

BTB Pitch0.35 H0.60, 16+2P Recep. Voltage Rating: 20V AC/DC ; Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing—— 1000MΩ Min ； Dielectric Withstanding Voltage: 200V AC/60s ； Contact Resistance: Signal—— 30mΩ Max/Pin ，GND—— 5mΩ Max/Pin ；Plug&Receptacle mating Force: 1st—— 40N/Max ，30th—— 40N/Min ；Plug&Receptacle un-mating Force: 1st——7.2N/Min ，30th—— 6.3N/Min ；Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃

P/N: 818022630

BTB Pitch0.35 H0.60, 24+2P Recep. Voltage Rating: 20V AC/DC ; Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing—— 1000MΩ Min ； Dielectric Withstanding Voltage: 200V AC/60s ； Contact Resistance: Signal——30mΩ Max/Pin ，GND—— 5mΩ Max/Pin ；Plug&Receptacle Mating Force: 1st—— 40N/Max ，30th—— 40N/Min ；Plug&Receptacle un-mating Force: 1st—— 10.4N/Min ，30th——9.1N/Min ； Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃

P/N: 818022632

BTB Pitch0.35 H0.60, 50+2P Recep. Voltage Rating: 20V AC/DC ; Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing—— 1000MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Contact Resistance: Signal—— 30mΩ Max/Pin ，GND——5mΩ Max/Pin ；Plug&Recep Mating Force: 1st—— 40N/Max ，30th—— 40N/Min ；Plug&Recep Unmating Force: 1st——18.2N/Min ，30th—— 15.6N/Min ；Operating Temperature: -40℃～＋85℃ Storage Temperature Range: -5℃～＋40℃

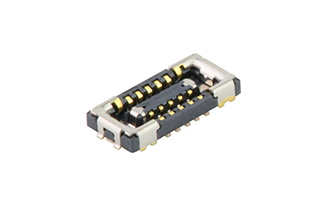

P/N: 818023199

BTB Pitch0.35 H0.60,10+2P Recep. Voltage Rating: 20V AC/DC；Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing——1000MΩ Min；Dielectric Withstanding Voltage: 200V AC/60s ; Contact Resistance: Signal——30mΩ Max/Pin ，GND—— 5mΩ Max/Pin ；Plug&Recep Mating Force: 1st—— 40N/Max ，30th—— 40N/Min ；Plug&Recep Unmating Force: 1st——6N/Min ，30th—— 4.8N/Min ；Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃

P/N: 818011732

RF BTB, Double Row, H0.60, 16Pin Recep. Voltage Rating: 10V AC/DC ; Frequency Range: DC 50MHz-12GHz ; Insulation Resistance: Before Testing—— 500MΩ Min ，After Testing—— 100MΩ Min ；Dielectric Withstanding Voltage: 100VAC 1Min ； Contact Resistance: Signal—— 50mΩ Max/Pin ，GND—— 50mΩ Max/Pin ；Plug&Recep Mating Force: 1st—— 35N/Max ，30th—— 35N/Min ；Plug&Recep Unmating Force: 1st——8N/Min ，30th—— 7N/Min ；Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃ ; V .S .W. R: 1.3Max ( DC0.5-3GHz ) ,1.4Max ( 3-6GHz ) ; Insertion Loss: 0.5-3GHz <0.15dB ,3-6GHz < 0.3dB ; Isolation: >35dB@3GHz , >25dB@8.5GHz

P/N: 818021367

RF BTB, Double Row, H0.60, 10Pin Recep. Voltage Rating: 10V AC/DC ; Frequency Range: DC 50MHz-12GHz ; Insulation Resistance: Before Testing—— 500MΩ Min ，After Testing—— 100MΩ Min ；Dielectric Withstanding Voltage: 100VAC 1Min ；Contact Resistance: Signal—— 50mΩ Max/Pin ，GND—— 50mΩ Max/Pin ; Plug&Recep Mating Force: 1st—— 30N/Max，30th—— 30N/Min ；Plug&Recep Unmating Force: 1st—— 5N/Min ，30th—— 3N/Min ；Operating Temperature: -40℃～＋85℃ ；Storage Temperature Range: -5℃～＋40℃ ；V .S .W. R: 1.3Max ( DC0.5-3GHz ) ，1.4Max ( 3-6GHz ) ；Insertion Loss: 0.5-3GHz <0.15dB ，3-6GHz < 0.3dB ；Isolation: >35dB@3GHz ，>25dB@8.5GHz

P/N: 818011604

RF BTB, Double Row, H0.60, 5Pin Recep. Voltage Rating: 10V AC/DC ; Frequency Range: DC 50MHz-12GHz ; Insulation Resistance: Before Testing—— 500MΩ Min ，After Testing—— 100MΩ Min ；Dielectric Withstanding Voltage: 100VAC 1Min ； Contact Resistance: Signal——50mΩ Max/Pin，GND——50mΩ Max/Pin ；Plug&Recep Mating Force: 1st—— 35N/Max， 30th: 35N/Min ；Plug&Recep Unmating Force: 1st—— 8N/Min，30th—— 7N/Min ；Operating Temperature: -40℃～＋85℃ ; Storage Temperature Range: -5℃～＋40℃ ; V .S .W. R: 1.3Max (DC0.5-3GHz) ,1.4Max (3-6GHz) ,1.5Max (6-8.5GHz) ; Insertion Loss:
0.5-3GHz < 0.15dB ,3-6GHz < 0.3dB ,6-8.5GHz < 0.5dB ; Isolation:
>35dB@3GHz ,>30dB@6GHz ,>25dB@8.5GHz

P/N: 818003563

Battery BTB, H0.75, 8Pin Recep. Voltage Rating: 60V AC/DC ; Rated Current: For Signal—— 0.3AMPS/Pin Max ，For Power—— 5AMPS/Pin Max ；Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing—— 1000MΩ Min ；Dielectric Withstanding Voltage: 200V AC/60s ；Contact Resistance: Signal—— 50mΩ Max/Pin ，Power—— 10mΩ Max/Pin ；Plug&Recep Mating Force: 10th—— 3.57kgf/Max；Plug&Recep Unmating Force: 10th—— 0.3kgf/Min；Operating Temperature: -55°C ~ +85°C ：Storage Temperature Range: -55°C ~ +85°C

P/N: 818003968

Battery BTB, P1.30 H0.90, 6Pin Recep. Voltage Rating: 60V AC/DC ; Rated Current: For Signal——1AMPS/Pin Max ，For Power——5AMPS/Pin Max ；Insulation Resistance: Before Testing—— 1000MΩ Min ，After Testing——1000MΩ Min ；Dielectric Withstanding Voltage: 500V AC/60s ；Contact Resistance:
Signal—— 20mΩ Max/Pin ，Power——20mΩ Max/Pin ；Plug&Recep Mating Force: 1st—— 40N/Max ，10th—— 40N/Max ；Plug&Recep Unmating Force: 1st——8N/Min ，10th——5N/Min ；Operating Temperature: -55°C ~ +85°C ；Storage Temperature Range: -55°C ~ +85°C
