ECT  offers a variety of automotive connector solutions including surround view system wiring harness solutions, 360-degree high-definition video solutions, Fakra connector based camera waterproof modules, coaxial waterproof wiring harnesses, 4-channel differential signal waterproof connectors and wiring harnesses, etc. The synergy of multiple vision and RF sensors can provide you the best sensing experience.

Refine your search
Results(20)
<P/N: 818016509

P/N: 818016509

USS RF VII PLUG CONNECTOR
Cable0.81mm Mating Height
1.4mm max

 See details
<P/N: 818019863

P/N: 818019863

USS RF RECEPTACLE CONN,VII,H0.53mm，Mating Height 1.4mm max

 See details
<D/N:600-10958-01

D/N:600-10958-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ ​Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details
<D/N:600-11464-01

D/N:600-11464-01

Fakra Cable Assembly; Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db, DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details
<D/N:600-11312-01

D/N:600-11312-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles) ; Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details
<D/N:600-11792-01

D/N:600-11792-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times (Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details
<D/N:600-11959-01

D/N:600-11959-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ ​Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details
<D/N:600-11874-01

D/N:600-11874-01

Fakra Cable Assembly Visual Parking Front Video Wiring Harness Ⅱ, Single Male to Female, Black. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details

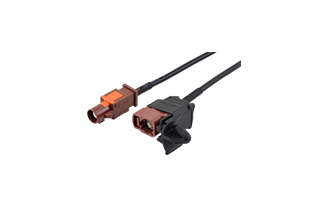

<D/N:600-11794-01

D/N:600-11794-01

Fakra Cable Assembly Visual Rear Parking Video Wiring Harness Ⅰ, Single Female to Male, Brown. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800VRMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details

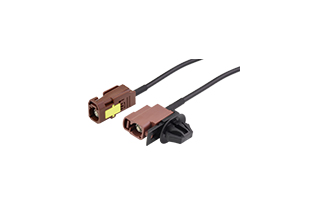

<D/N:600-11875-01

D/N:600-11875-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800VRMS; Voltage Rating: 335VRMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details

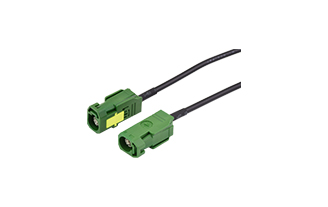

<D/N:600-11876-01

D/N:600-11876-01

Fakra Cable Assembly, Visual Parking Video Output Wiring Harness I, Single Female to Female, Green. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26db,DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 800 V RMS; Voltage Rating: 335V RMS; Current Rating: ≤ 1A DC; Durability: 25 Times(Cycles); Cable Retention Force: 80N Min; Environmental Requirements: Meet RoHS

 See details

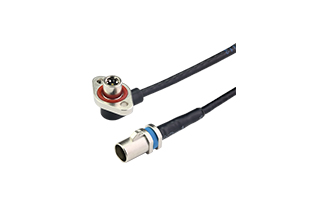

<D/N:600-11685-01

D/N:600-11685-01

Fakra Cable Assembly. Impedance: 50 Ω; Center Contact Resistance: 5.0 mΩ Max; Frequency Range: DC to 4 GHz; Return Loss: ≥ -26dB, DC to 1GHz; Insertion Loss: ≤ 0.1 x √f(GHz) dB; Insulation Resistance: 100MΩ Min; Dielectric Withstanding Voltage: 500V RMS; Voltage Rating: 60V Max; Current Rating: ≤ 1A DC Max; Durability: 100 times(cycles); Cable Retention Force: 100N Min; Mating Force: 25N Max; Unmating Force: 25N Max; Locking Device Strength: 80N Min; Operating Temperature: -40°C ~ +105°C; Ingress Protection: IP68&IP69K; Environmental Requirements: Meet RoHS

 See details
