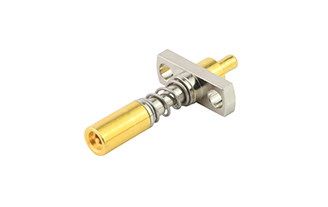

USS RF I/II to ML51 Male Adaptor
1.1 Frequency Range: DC~6GHz
1.2 Frequency Range: -40℃～+85℃
1.3 Insulation Resistance: 100MΩ
1.4 Dielectric Withstanding Voltage: 300V/AC
1.5 Durability: 20000 Cycles
1.6 Voltage Standing Wave Ratio: 1.40 Max
1.7 Insertion Loss: 0.55dB Max
1.8 Rated Voltage: 60V AC ( R.M.S )
1.8 Inner Conductor Impedance: 100mΩ
1.9 External Conductor Impedance: 100mΩ
