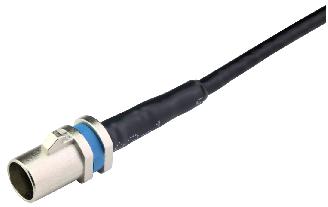

Appearance Dimensions
1.1 Impedance: 50 Ω
1.2 Frequency Range: 0~3GHz
1.3 VSWR: 1.5 Max
1.4 Insertion Loss: ≤ 0.1 x √f(GHz) dB
1.5 Voltage Rating: 60V DC
1.6 Dielectric Withstanding Voltage: 500V
1.7 Insulation Resistance: 1000MΩ Min
1.8 Center Contact Resistance: 10 mΩ Max
1.9 Outer Contact Resistance: 10 mΩ Max
2.0 Center Contact Retention Force: 22N
2.1 Durability: 100 Times (Cycles)
2.2 Cable Retention Force: 110N Min
2.3 Operating Temperature: - 40°C ~ +105°C
2.4 Ingress Protection: IP67&IP68
2.5 Environmental Requirements: Meet RoHS
2.6 RF-leakage: ≥ 65 dB up to 1 GHz
