P/N: 818011850

FPC 0.3 Front Flip H=1.0 11P. Operating Voltage: AC 30V ; Current Carrying Capacity: 0.2A ; Insulation Resistance: 50MΩ Min ; Dielectric Withstanding Voltage: 150V AC/60s ; Initial Contact Resistance: 50mΩ Max ; Final Contact Resistance: 100mΩ Max ; Temperature Rise: △30°C Max ; FPC Retention Force: 0.13N/Pin Min ; Operating Temperature: -55℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

P/N: 818001568

FPC 0.3 Front Flip H=1.0 13P. Operating Voltage: AC 30V ; Current Carrying Capacity: 0.2A ; Insulation Resistance: 50MΩ Min ; Dielectric Withstanding Voltage: 150V AC/60s ; Initial Contact Resistance: 50mΩ Max ; Final Contact Resistance: 100mΩ Max ; Temperature Rise: △30°C Max ; FPC Retention Force: 0.13N/Pin Min ; Operating Temperature: -55℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

P/N: 818001783

FPC 0.5 Front Flip H=1.0 10P. Operating Voltage: AC 30V ; Current Carrying Capacity: 0.2A ; Insulation Resistance: 50MΩ Min ; Dielectric Withstanding Voltage: 150V AC/60s ; Initial Contact Resistance: 50mΩ Max ; Final Contact Resistance: 100mΩ Max ; Temperature Rise: △30°C Max ; FPC Retention Force: 0.13N/Pin Min ; Operating Temperature: -55℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

P/N: 818003630

FPC 0.5 Front Flip H=1.0 10P. Operating Voltage: AC 50V ; Current Carrying Capacity: 0.5A ; Insulation Resistance: 50MΩ Min ; Dielectric Withstanding Voltage: 150V AC/60s ; Initial Contact Resistance: 50mΩ Max ; Final Contact Resistance: 100mΩ Max ; Temperature Rise: △30°C Max ; FPC Retention Force: 0.13N/Pin Min ; Operating Temperature: -55℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

P/N: 818002390

FPC 0.5 Back Lock H=1.0 6P. Operating Voltage: AC 50V ; Current Carrying Capacity: 0.5A ; Insulation Resistance: 500MΩ Min ; Dielectric Withstanding Voltage: 250V AC/60s ; Initial Contact Resistance: 50mΩ Max ; Final Contact Resistance: 100mΩ Max ; Retention Force:0.15N/Pin Min ; Operating Temperature: -40°C ~ +85°C ; Storage Temperature Range: -10°C ~ +50°C

P/N: 818012732

FPC 0.5 Back Lock H=1.0 24P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.5A ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 250V AC/60s ；Initial Contact Resistance: 50mΩ Max ；Final Contact Resistance: 100mΩ Max ；Retention Force: 0.15N/Pin Min ；Operating Temperature: -40°C ~ +85°C ；Storage Temperature Range: -10°C ~ +50°C

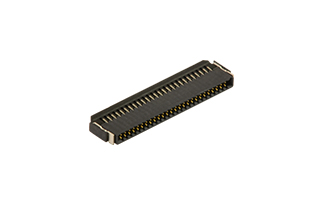

P/N: 818016970

FPC 0.5 Back Lock H=1.0 26P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.5A ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 250V AC/60s ；Initial Contact Resistance: 50mΩ Max ；Final Contact Resistance: 100mΩ Max ；Retention Force:0.15N/Pin Min ；Operating Temperature: -40°C ~ +85°C ；Storage Temperature Range: -10°C ~ +50°C

P/N: 818016971

FPC 0.5 Back Lock H=1.0 32P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.5A ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 250V AC/60s ；Initial Contact Resistance: 50mΩ Max ；Final Contact Resistance: 100mΩ Max ；Retention Force:0.15N/Pin Min ；Operating Temperature: -40°C ~ +85°C ；Storage Temperature Range: -10°C ~ +50°C

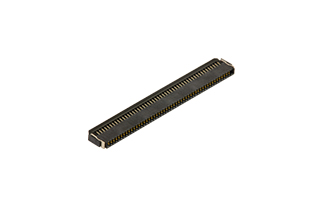

P/N: 818016972

FPC 0.5 Back Lock H=1.0 50P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.5A ；Insulation Resistance: 500MΩ Min ；Dielectric Withstanding Voltage: 250V AC/60s ；Initial Contact Resistance: 50mΩ Max ；Final Contact Resistance: 100mΩ Max ；Retention Force:0.15N/Pin Min ；Operating Temperature: -40°C ~ +85°C ；Storage Temperature Range: -10°C ~ +50°C

P/N: 818018084

FPC 0.25 Front Flip H=1.2 29P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.2A ；Insulation Resistance: 50MΩ Min ；Dielectric Withstanding Voltage: 150V AC/60s ；Initial Contact Resistance: 80mΩ Max ；Final Contact Resistance: 100mΩ Max ；Temperature Rise: △30°C Max ; FPC Retention Force: 0.15N/Pin Min ; Operating Temperature: -40℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

P/N: 818018085

FPC 0.25 Front Flip H=1.2 31P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.2A ；Insulation Resistance: 50MΩ Min ；Dielectric Withstanding Voltage: 150V AC/60s ；Initial Contact Resistance: 80mΩ Max ；Final Contact Resistance: 100mΩ Max ；Temperature Rise: △30°C Max ; FPC Retention Force: 0.15N/Pin Min ; Operating Temperature: -40℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃

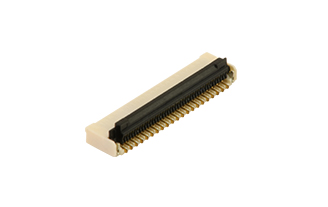

P/N: 818018086

FPC 0.25 Front Flip H=1.2 41P. Operating Voltage: AC 50V ；Current Carrying Capacity: 0.2A ；Insulation Resistance: 50MΩ Min ；Dielectric Withstanding Voltage: 150V AC/60s ；Initial Contact Resistance: 80mΩ Max ；Final Contact Resistance: 100mΩ Max ；Temperature Rise: △30°C Max ; FPC Retention Force: 0.15N/Pin Min ; Operating Temperature: -40℃～＋85℃ ; Storage Temperature Range: -10℃～＋50℃
